Transcribe Phone Calls with Twilio Functions and Deepgram

Twilio is a cloud communication platform that lets developers integrate a whole set of communication technologies into applications. On top of providing APIs, they also have Twilio Runtime - which allows the development and deployment of serverless applications directly in the Twilio Console. Super cool.

Today you will be using Twilio Functions to build a phone number that gives callers a prompt, then records a message similar to a voicemail. Once completed, a transcript will be generated with Deepgram and sent to the caller.

Before You Start

You will need a free Deepgram API Key. You will also need a Twilio account and a phone number in your account with SMS and Voice capabilities.

Set Up Twilio Functions Space

Inside the Twilio Console, head to Developer Tools -> Functions & Assets and create a new service. A service can contain multiple Twilio Functions and assets related to a single project. It's important that you create a new service here and not a standalone function.

Head to the Dependencies section and add @deepgram/sdk (you can omit the version for the latest). Then head to the Environment Variables section and add a key called DEEPGRAM_KEY with the value of your API Key generated in your Deepgram console.

Functions can have one of three visibility levels - public, protected, and private. The default of 'protected' is totally fine for this project and means that only Twilio webhooks can trigger them.

Record Inbound Call

Rename the default /welcome function to /inbound. Replace the whole file with the following:

exports.handler = function(context, event, callback) {
  let twiml = new Twilio.twiml.VoiceResponse()

  twiml.say({ voice: 'woman', language: 'en' }, 'Try Deepgram transcription by speaking after the beep. Talk about what you see around you right now.')

  twiml.record({
    maxLength: 30, // seconds, 30 is default
    playBeep: true,
    recordingStatusCallback: '/transcribe'
  })

  return callback(null, twiml)
};

To respond to incoming calls and texts, Twilio lets you form and respond to requests with TwiML (Twilio Markup Language). It looks a lot like XML and can be generated with the Node Helper Library, which is included in Twilio Functions by default.

This snippet creates a new TwiML response, speaks the phrase, beeps, and begins the recording. Once the call is ended (hang up or ended after 30 seconds of recording), a payload is sent to /transcribe (which will be created in the next section).

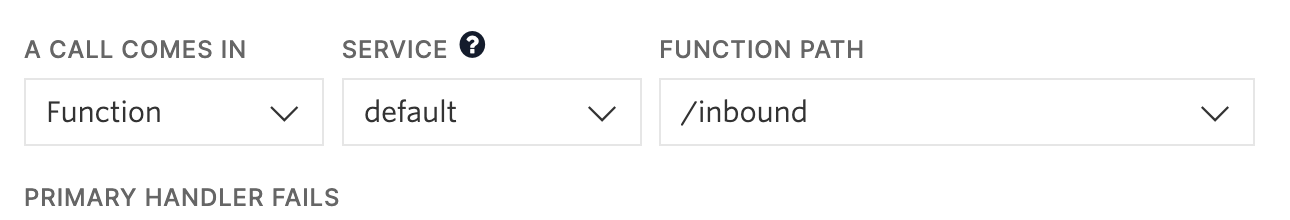

Save the function, and click Deploy All. Once deployed, this function is ready to be used. Go to your Twilio number settings, and when a call comes in, select Function. Select your service and the /inbound function path.

Call your number, and you should hear it speaking, then beep. If you speak now, a recording will take place, and data will be sent to /transcribe, but that endpoint does not exist yet - let's fix that.

Transcribe Call

Create a new function - /transcribe. Delete the boilerplate and set up the function with the following code:

const { Deepgram } = require('@deepgram/sdk')
const deepgram = new Deepgram(process.env.DEEPGRAM_KEY)

exports.handler = async function(context, event, callback) {
  const { RecordingUrl, CallSid } = event
  // Further code here
  return callback(null, true)
};

The recording data will be available in the event object, which destructures to the RecordingUrl and CallSid values. Unfortunately, this payload doesn't include the caller's phone number, but it can be looked up from the CallSid. Where the Further code here comment is situation, add the following:

const twilioClient = context.getTwilioClient()
const { from: caller, to: twilioNumber } = await twilioClient.calls(CallSid).fetch()

The caller's phone number is now available in a variable called caller, and the number they called as twilioNumber. Now generate a transcription with Deepgram's Node.js SDK:

const transcriptionFeatures = { punctuate: true, tier: 'enhanced' }
const { results } = await deepgram.transcription.preRecorded({ url: RecordingUrl }, transcriptionFeatures)
const { transcript } = results.channels[0].alternatives[0]

This request uses Deepgram's punctuation feature, along with a request to use the enhanced tier for higher-accuracy transcripts.

Send Transcription via SMS

Now that a transcript has been generated, it's time to send it to the caller. Just after the transcript is generated, add the following to send an SMS message:

const message = await twilioClient.messages.create({
  body: `Here is what you said:\n\n${transcript}`,
  to: caller,
  from: twilioNumber
})

Finally, change the callback value from true to { results, message }. This is purely for logging to your Twilio Console.

Save both files again and deploy all functions in your service. Call your Twilio number, speak after the beep, then hang up. You should receive a message a few seconds later.

In Summary

The final code is as follows:

// /record
exports.handler = function(context, event, callback) {
	let twiml = new Twilio.twiml.VoiceResponse()
  twiml.say({ voice: 'woman', language: 'en' }, 'Try Deepgram transcription by speaking after the beep. Talk about what you see around you right now.');
  twiml.record({
    maxLength: 30,
    playBeep: true,
    recordingStatusCallback: '/transcribe'
  })
  return callback(null, twiml)
}

// /transcribe
const { Deepgram } = require('@deepgram/sdk')
const deepgram = new Deepgram(process.env.DEEPGRAM_KEY)
exports.handler = async function(context, event, callback) {
  const { RecordingUrl, CallSid } = event
  const twilioClient = context.getTwilioClient()
  const { from: caller, to: twilioNumber } = await twilioClient.calls(CallSid).fetch()
  const transcriptionFeatures = { punctuate: true , tier: 'enhanced' }
  const { results } = await deepgram.transcription.preRecorded({ url: RecordingUrl }, transcriptionFeatures)
  const { transcript } = results.channels[0].alternatives[0]
  const message = await twilioClient.messages.create({
    body: `Here is what you said:\n\n${transcript}`,
    to: caller,
    from: twilioNumber
  })
  return callback(null, { results, message })
}

Don't forget to install dependencies and set your environment variables. If you have any questions about this project, feel free to get in touch.
